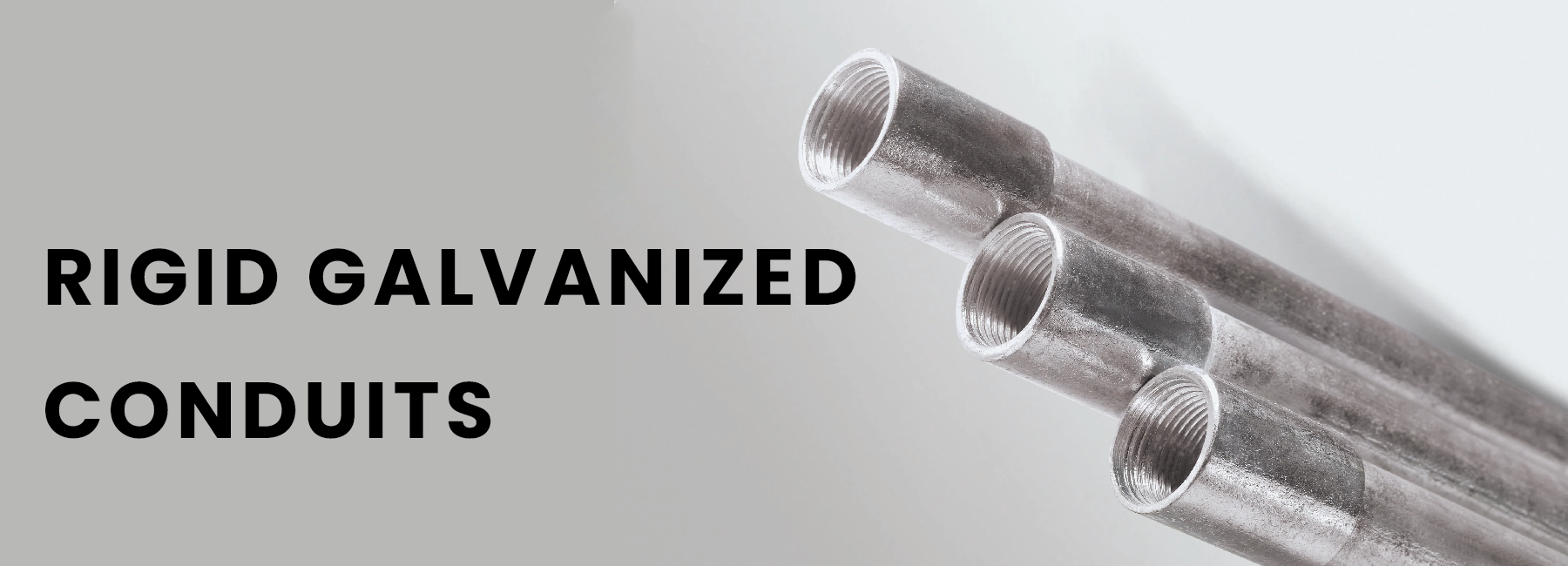

RIGID GALVANIZED CONDUITS

UL 6 - Galvanized Rigid Metal Conduits

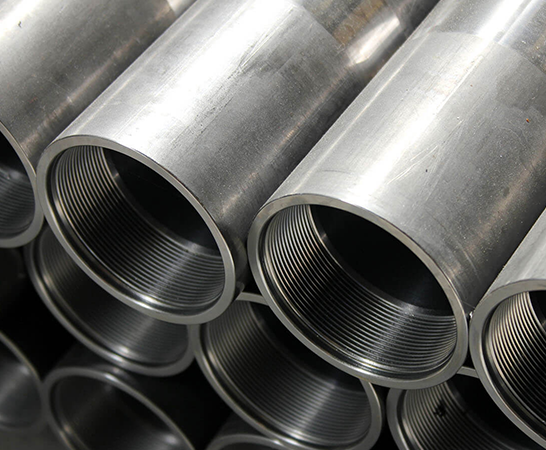

Goodluck RIGID GALVANIZED CONDUITS are hot-dipped galvanized both inside and outside. The rigid conduits are threaded at both ends using state-of-the-art automatic threading machines and are supplied with UL-approved couplings on one end, with the other end protected by color-coded plastic thread protection caps. The external and internal surfaces of the RIGID GALVANIZED CONDUITS are hot-dipped galvanized, followed by a clear anti-corrosion coating for enhanced protection, ensuring long life and durability.

These RIGID GALVANIZED CONDUITS are designed for jobs that require the physical protection provided by the thickest walls, known for their strength and heavy weight. Tough enough for outdoor applications, energy and manufacturing plants, and corrosive environments, Goodluck RIGID GALVANIZED CONDUITS are UL6 certified (File No. E510369). They are also manufactured according to the American National Standard for Electrical Rigid Conduit (ANSI C80.1)

...
Trade Size Metric Designator Outside Diameter Nominal Wall Thickness** Min. Acceptable Weight of Ten Pcs of Conduits With Couplings QTY In Master Bundle QTY In Inner Bundle End Caps Color
In Mm
In Mm
Kg Pcs Pcs
1/2" 16
0.840 21.34
0.104 2.64
35.8 250 10 Black
3/4" 21
1.050 26.67
0.107 2.72
47.6 200 5 Red
1" 27
1.315 33.40
0.126 3.20
69.4 125 1 Blue
1 1/4" 35
1.660 42.16
0.133 3.38
91.2 90 Red
1 1/2” 41
1.900 48.26
0.138 3.51
112.9 80 Black
2 53
2.375 60.33
0.146 3.71
150.6 60 Blue
25 63
2.875 73.03
0.193 4.90
239.0 37 Black
3 78
3.500 88.90
0.205 5.21
309.6 30 Blue
3 1/2” 91
4.000 101.60
0.215 5.46
376.9 25 Black
4 103
4.500 114.30
0.225 5.72
441.0 20 Blue
5 129
5.563 141.30
0.245 6.22
535.8 15 Blue
5 155
6.625 168.28
0.266 6.76
791.7 10 Blue
Applicable Tolerances -
Length: 10 Feet (3.05 Meters) +/- 0.25 inch (6.35 mm)
Outside Diameter: TRADE SIZE ½” TO 1-1/2”: ±0.015” (±0.38MM)
; TRADE SIZE 2” – 6” : ±1%
**Wall thickness mentioned are just for information only and not a requirement of UL standard.

We also produce rigid conduits in 20 feet (6 Meters) length. 20 Feet conduit provide quick and easy installation and also fewer fittings.
Features of Goodluck Rigid Conduits –
  • 1. Higher corrosion resistance with superior & uniform galvanizing quality.
  • 2. Accurate dimensions and uniform wall thickness.
  • 3. Clean and smooth internal surface.
  • 4. Easy coupling and fast installation.
  • 5. Easy wire pushing and pulling.
  • 6. Easy & good fabrication properties like smooth cutting, bending & welding.
  • 7. Uniform and consistent quality.
  • 8. Meets the underwriters laboratories specifications Ul6.
  • 9. Tested and certified for safety.
