LDP Product and Capabilities

Existing & New Range

ERW Precision Tubes

Existing Range

OD 17.93 mm - 127.00 mm
Thk 1.2 mm - 10.40 mm

New Range

OD 220 mm max
Thk 15 mm max

Cold Drawn Welded Tubes

Existing Range

OD 8.00 mm - 120.00 mm
Thk 0.90 mm - 9.50 mm

New Range

After Large Diameter Plant (June 2024)

OD 17.93 mm - 203.00 mm
Thk 1.2 mm - 14.00 mm

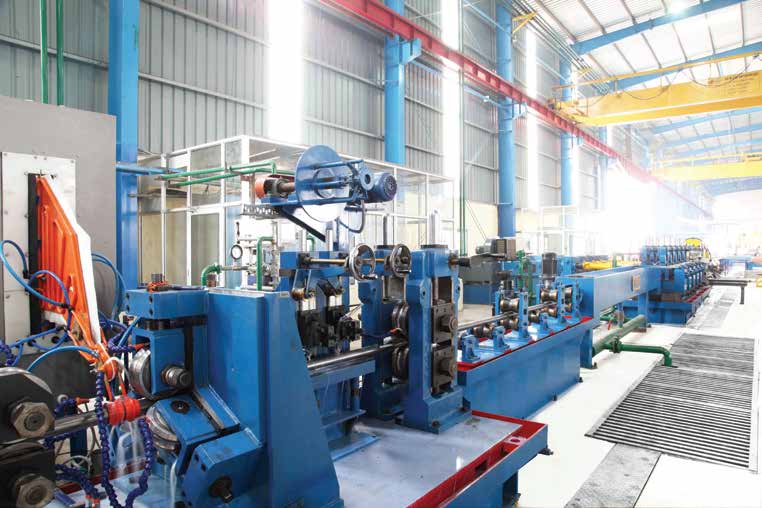

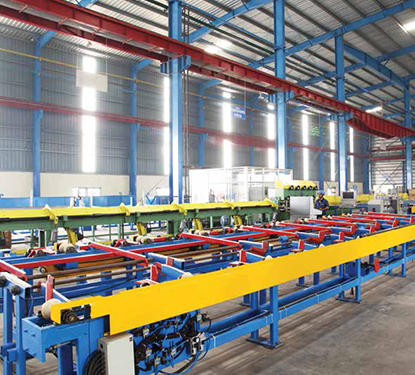

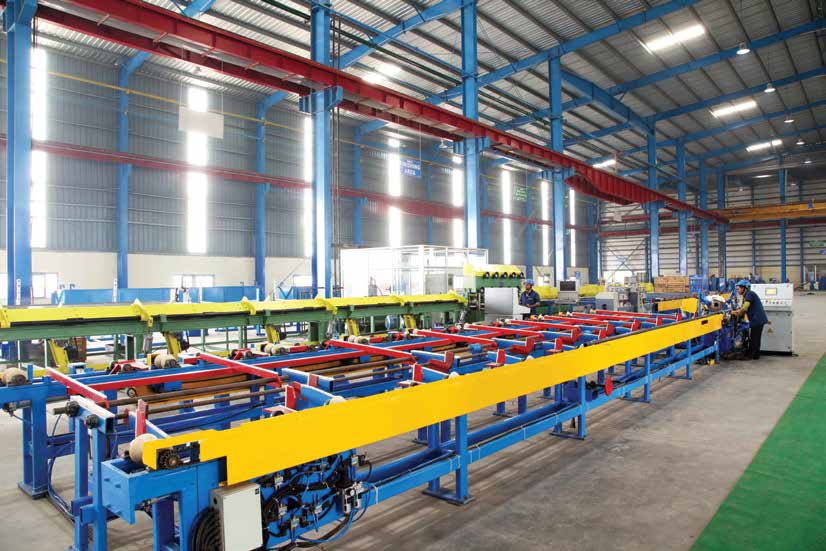

CDW & ERW Precision Tubes Expansion

1 Goodluck Industries has Set-up a new manufacturing facility for large Diameter ERW/CDW Precision Tubes for Hydraulic cylinder tubing's, Construction and Farm Equipment's and Various Automotive Applications.

2 This Plant will have capability to Produce 220 mm OD and 15 mm Thickness in ERW Tube and 190 mm OD and 14 mm Thickness in CDW Tube.

3 In this Plant The special feature is online and Offline Eddy and UT testing alongwith Magnetic Resonance Testing facility.

4 Land area approximate22 Acres

5 This Plant will be This Plant has manufacturing capacity of producing CDW 30000 Tons / PA and ERW up to 60000 Tons /PA.

6 New Facility was inaugurated in September 2024 and the commercial production has already been started.

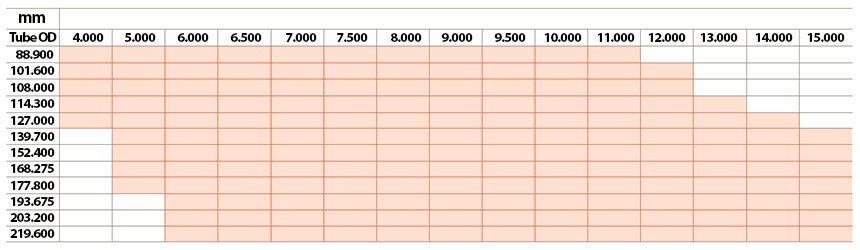

ERW-ROUND Tubes Range LDP

ERW-ROUND Tubes Range LDP :- 4.00 to 15.00 OD and 89.90 to 219.60 THICKNESS

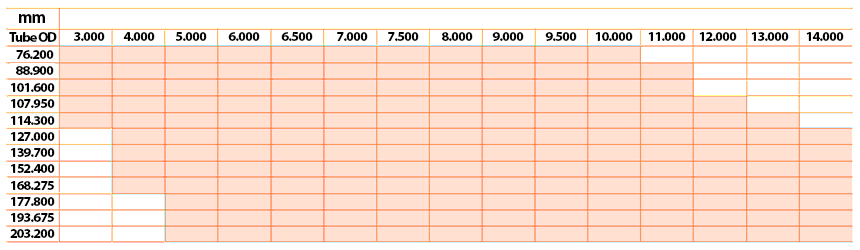

CDW-ROUND Tubes Range LDP

CDW-ROUND Tubes Range LDP Range :- 76.20 to 203.200 OD and 3.00 to 14.00 THICKNESS

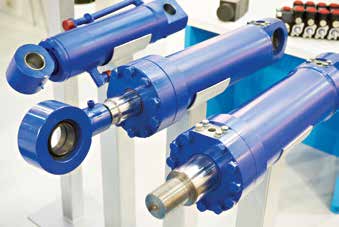

Overview of Hydraulic Cylinder Tubes

Product Name: Hydraulic Cylinder Tube

Suitable for (1) Ready to use (H9), (2) Skiving, Roller Burnishing & Honing (HPZ), (3) Chrome Plating

A hydraulic cylinder tube is a precision-made hollow cylinder, typically constructed from steel or other high-strength materials (E355), and designed for use in hydraulic systems. It is usually made of cold drawn welded tubes (DOM). Hydraulic cylinder tubes are usually used to produce hydraulic cylinder body, so it is called hydraulic cylinder barrel. H9 tubing is primarily used to improve the geometric form of a surface and the surface texture.

Advantages of Hydraulic Cylinder Tube

High precision tolerances, as per EN10305-2 / Client requirement
Smooth inside surface for H9 – The ID roughness requirement is Max Ra 0.8, we can maintain the same well within 0.4 Ra max, or as per client requirement.
Flexible order quantity: we accept small quantity orders, even if there is only ten piece of hydraulic cylinder tubing we can produce and supply.
Good weld-ability: The weld-ability of these tubing is very good, this is quite helpful for manufacturing the cylinders.

Main Applications of Hydraulic Cylinder Tubing

These tubing are mostly used as cylinder tube, such as hydraulic cylinder tube, which are widely used for manufacturing and repairing hydraulic cylinders. As H9 tube usually has very high dimension tolerance and good surface smoothness, so this product is also used in applications where precision dimension or high smooth surface is need. For examples, H9 tubes are suitable for various kinds of Precision Mechanical Tube, Cylinder Tubing and Hydraulic Cylinder, Construct use Multi Joint Tube, Steel Axis Pipe, Injection Machine and Robotic Arm, and so on.

Product Standard

H9 hydraulic cylinder tube is usually produced according to norms as EN10305-2, ASTM A513, etc on customer’s request.

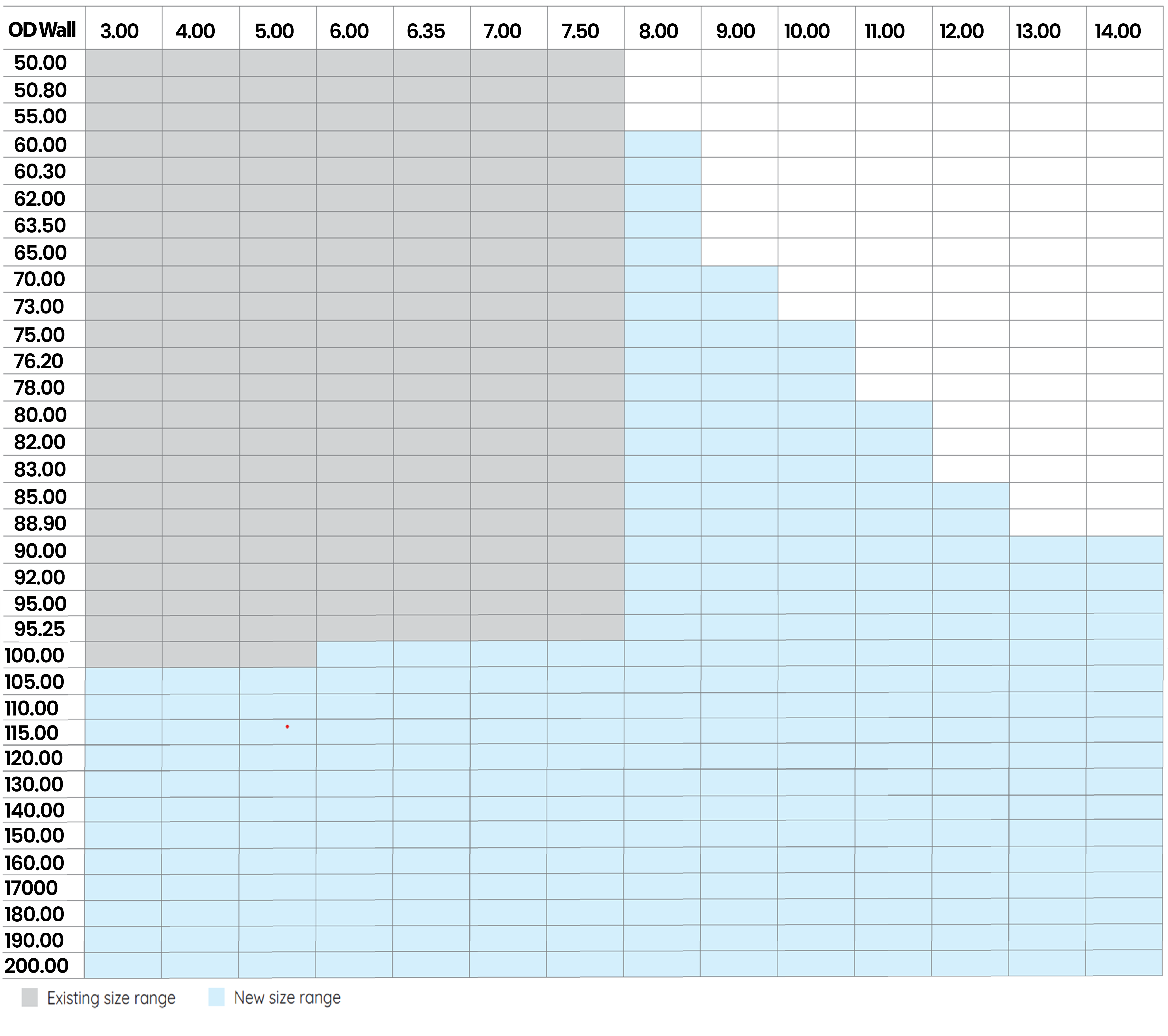

Size Range

We manufacture honed tubes in metric dimensions size range from O.D 50 mm to O.D 200 mm, Wall thickness 3.0 – 14.0 mm

Carbon Steel Hydraulic Cylinder Tubing is available with grades as below

E355 Other steel grades of H9 tube is available on customer’s request.

Below is the chemical composition & mechanical properties of the main steel grades for honed cylinder tube.

Grade	Chemistry	%	Yield	Tensile	Elongation	Typical Hardness
			MPa	MPa	% in 2″ section	Min
E355 ST52.3	Carbon	0.220 Max	-	640	4	HRB-80
	Mn	1.600 Max	-	-	-	-
	P	0.035 Max	-	-	-	-
	S	0.035 Max	-	-	-	-

Specification of other steel grades can be provided upon customers’ request.

Hydraulic Tubing Tolerance Standard (Metric Size)

H9 ID tubing can be supplied with ID tolerance of H9, H10 and H11 depends on customers’ request and its dimension. Here below is the detailed Inside Diameter (ID) tolerance values.

Inner Diameter	Inner Diameter Tolerance			Honed Tube Wall Thickness Tolerance
-	H9	H10	H11
30	＋ 0.052 0	＋ 0.084 0	＋ 0.130 0
＞30-50	＋0.062 0 ＋	+0.100 0	＋0.160 0
＞50-80	＋0.074 0	＋0.120 0	＋0.190 0
＞80-100	＋0.087 0	＋0.140 0	＋0.220 0
＞100-120	＋0.087 0	＋0.140 0	＋0.220 0
＞120-140	＋0.100 0	＋0.160 0	＋0.250 0	±5%
＞140-160	＋0.100 0	＋0.160 0	＋0.250 0
＞160-180	＋0.100 0	＋0.160 0	＋0.250 0
＞180-200	＋ 0.115 0	＋ 0.185 0	＋ 0.290 0
