Goodluck Industries draws its strength and garners the trust of its customers through a meticulously planned manufacturing setup.
Goodluck Industries draws its strength and garners the trust of its customers through a meticulously planned manufacturing setup.
Goodluck Industries draws its strength and garners the trust of its customers through a meticulously planned manufacturing setup.

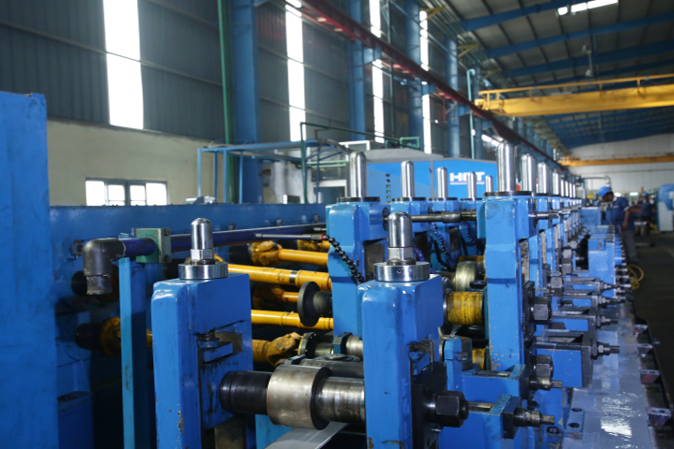

The mill has been specifically designed to roll carbon steel tubes. Quick roll changeover considerably increases the production uptime and contributes positively to the overall capacity. Further, features like, online edge preparation and external & internal bead removal within the mill ensure maximum tube strength and superior quality.
The tube mills at Goodluck Industries are dedicated to Carbon steel tube manufacturing operating on High-Frequency induction welding technologies. It is an edge that speaks volumes of the company’s command in the industry and capability to induce innovative manufacturing practices for optimal product quality.

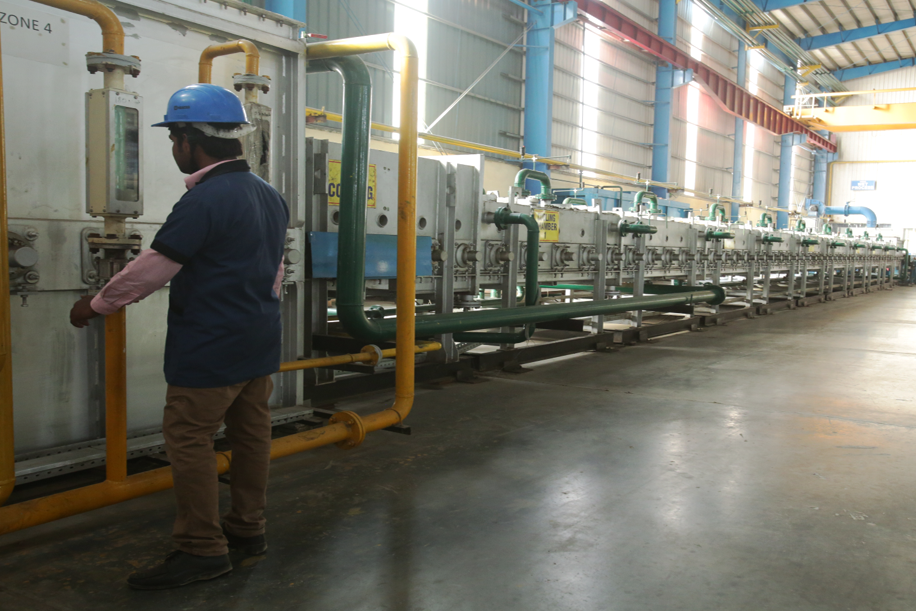

In this process, the tube is heated to a specific temperature and then cooled as per customer specific requirement and supply condition for tube like SRA, Normalized , Annealed , Hardening , Induction Hardening and Quenching.

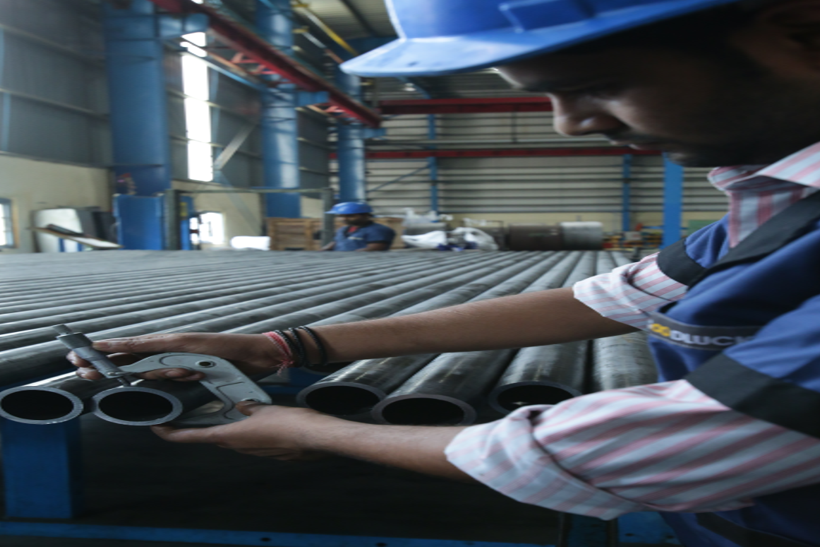

The mill uses variable high-frequency induction welding technology for welding tubes, practices that render great welding strength to the tubes without using any kind of filler material. The weld quality is further ensured by the online Eddy Current Tester, UT Test, MRT test for inspection of any possible welding flaws & OD, ID defect.

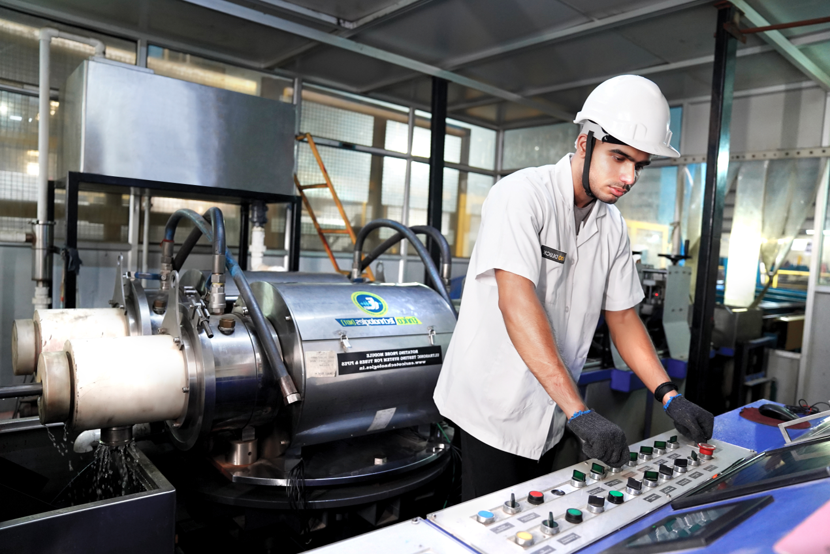

BC80 Fully automated cutting and chamfering solution for bushings production CNC sawing and end-machining for tubes, certified production of bushes Non-stop production 24 hours a day of bushings up to 80 mm in diameter and from
32 to 300 mm long and thickness range is 0.89 to 6.80 mm. BC80 is the CNC tube cutting machine for sawing, chamfering and measuring parts.. Dynamic part washing flushes the part prior to measurement. Process reliability is assured. Produce up to 2,200 parts/hour from there the machine automatically applies the perfect cutting conditions to maximize productivity
Precision cutting of the tubes is done using an in-built rotary cut-off system at tolerances that have never been achieved before in the industry. The true-sized tubes are then passed on to the re-cut machine, if required, for cutting of tubes into multiple smaller length tubes as per specifications.

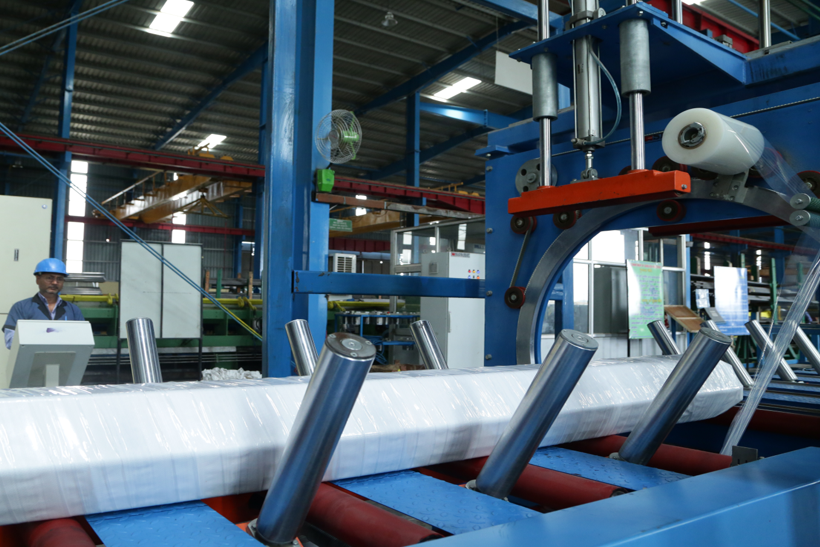

The finished & approved tubes are bundled and then Suitably Packed to avoid any in-transit damage.
